KAISER V 400 WR / 2840

MACHINE INFORMATION AND SPECIFICATION

    Manufacturer:

  • Kaiser

    Model:

  • KAISER V 400 WR / 2840

    Condition:

  • Used

    YOM:

  • NA

    Control:

  • NA

    Price:

  • POA

    Country:

  • Germany
DESCRIPTION
  • Press capacity: 400 ton
  • Ram stroke: 20 - 250 mm
  • Slide adjustment: 150 mm
  • Shut height (stroke down, adjustment up): 760 mm
  • Free frontal opening L-R: 2840 mm
  • Free lateral opening F-B: 900 mm
  • Table surface area : 2.600 x 1.400 mm
  • Slide area: 2.500 x 1.400 mm
  • Number of strokes: 10 - 80 s.p.m.
  • Table height over floor: 1000 mm
  • Required power: 96 kW
  • Height over floor approx.: 4900 mm
  • Dimensions L x W x H: 4700 x 3300 x 4900 mm
  • Weight of machine approx.: 80 ton
  • Standard configuration:

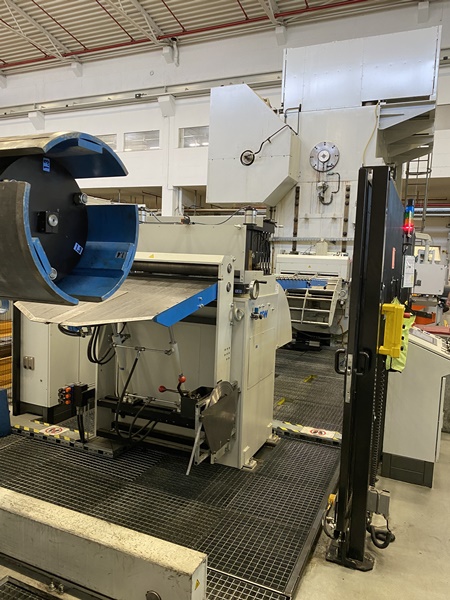

  • Feeding unit (YOM 2018) consisting of:
  • Decoiler Typ SHR 10/1500
  • Coil weight 10.000 kg
  • Coil exterior diameter 1500 mm
  • Band width 150 - 1000 mm
  • Band thickness 0,35 - 2,5 mm
  • Working speed 21 m / min
  • Coil interior diameter 480 - 530 mm
  • Required power 4,5 kW
  • Straigthener Typ RMZ 100 / 86
  • Material width max. 1000 mm
  • Number of feeding rolls 2 pieces
  • Diameter of the feeding rolls 120 mm
  • Number of leveler rolls 8 pieces
  • Diameter of leveler rolls 60 mm
  • Working speed 5 - 25 m / min
  • Roll feeder Typ WV 100 / 120
  • Material width max. 1000 mm
  • Number of feeding rolls 2 pieces
  • Diameter of the feeding rolls 120 mm
  • Description:
  • The press was mechanically and electrically overhauled in 2018, the following work was carried out: NEW SIEMENS control NEW CE declaration of conformity New eccentric shaft and new eccentrics New bearing seats in the countershaft Relocate countershaft New roller bearing installed Relocate flywheel Hydraulic unit overhauled October 2018
.
