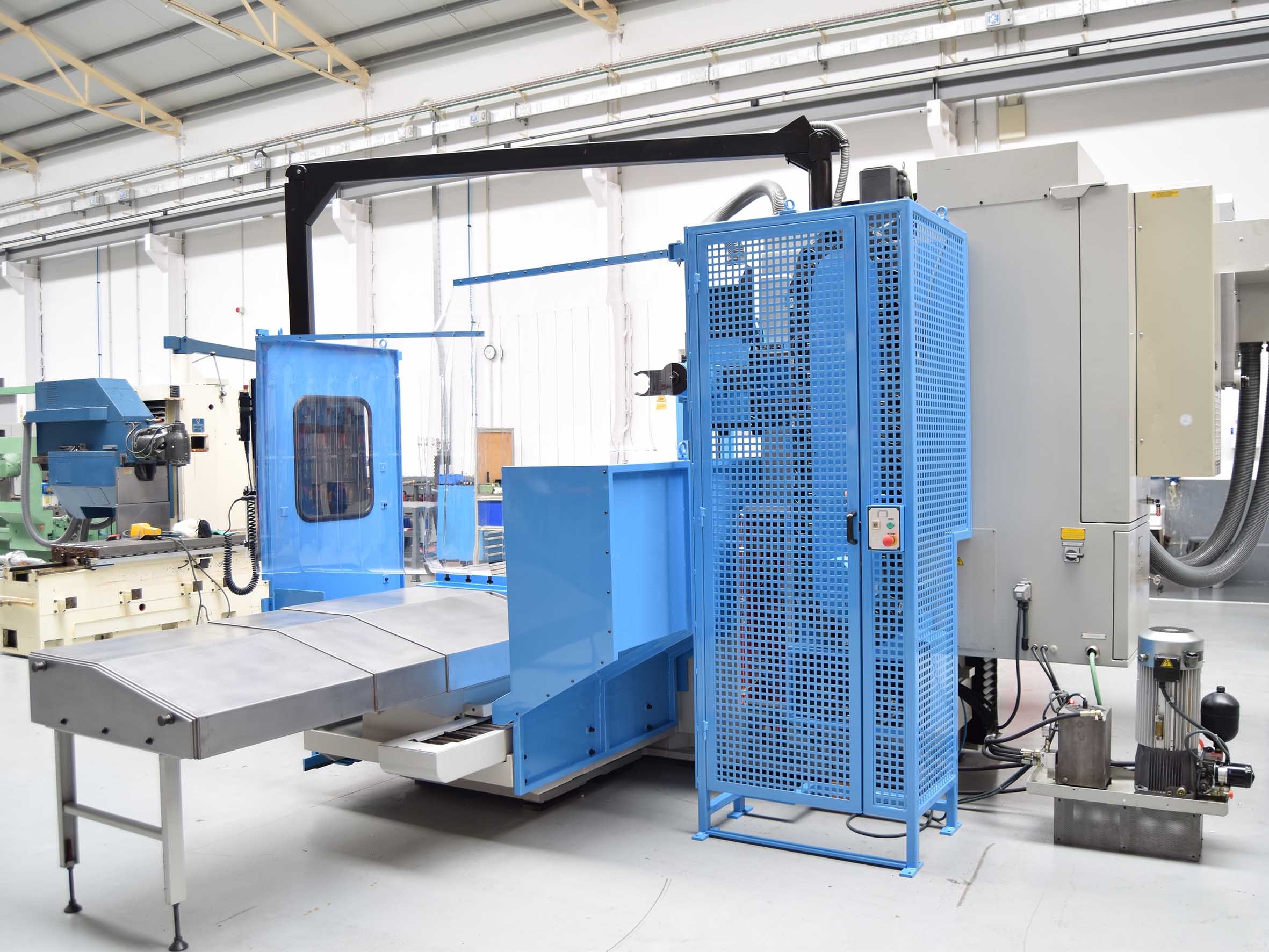

Zayer 20 KFU 3000

MACHINE INFORMATION AND SPECIFICATION

    Manufacturer:

  • Zayer

    Model:

  • Zayer 20 KFU 3000

    Condition:

  • NA

    YOM:

  • NA

    Control:

  • NA

    Price:

  • POA

    Country:

  • Spain
DESCRIPTION
Manufacturer ZAYER Model 20 KFU -3000 New in/ Reconstructed 2005/2021 CNC HEIDENHAIN TNC 530i Table Surface 3.000 x 1.000 mm Longitudinal Traverse (X Axis) 2.700 mm Transversal Traverse (Y Axis) 1.200 mm Vertical Traverse (Z Axis) 1.000 mm Rapid Traverse (X,Y,Z) 20.000 mm/min Max. Working Feed 10.000 mm/min Taper ISO-50 Turning Speeds 20 – 3.000 r.p.m. Universal 45º Auto Indexing Head Head 2,5º Elbow 1º Automatic Tool Changer (ATC) INCLUDED ATC type Cadena / Chain Tools at ATC 30 Longitudinal Chip Conveyor INCLUDED Main Motor Power 28 kW Speed Ranges 2 Portable Handwheel Heidenhain HR 420 Carrying Load Table 10.000 kg. Machine Weight 24.000 kg.
