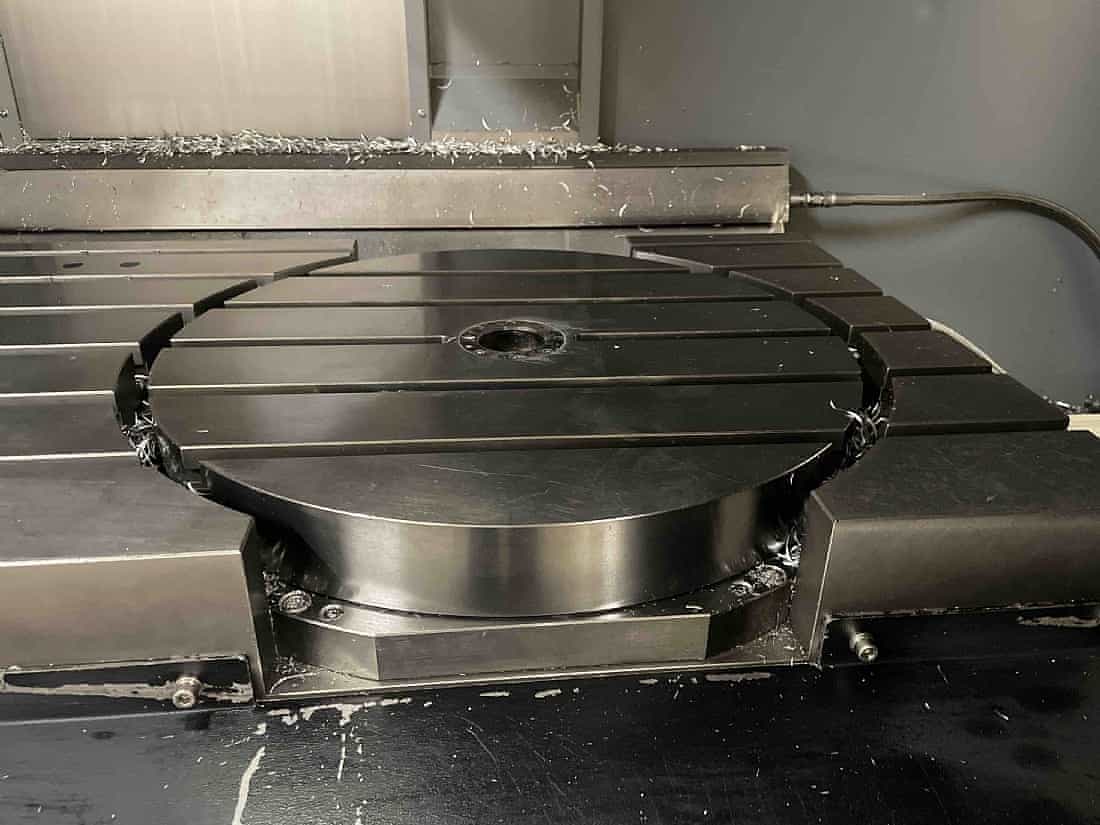

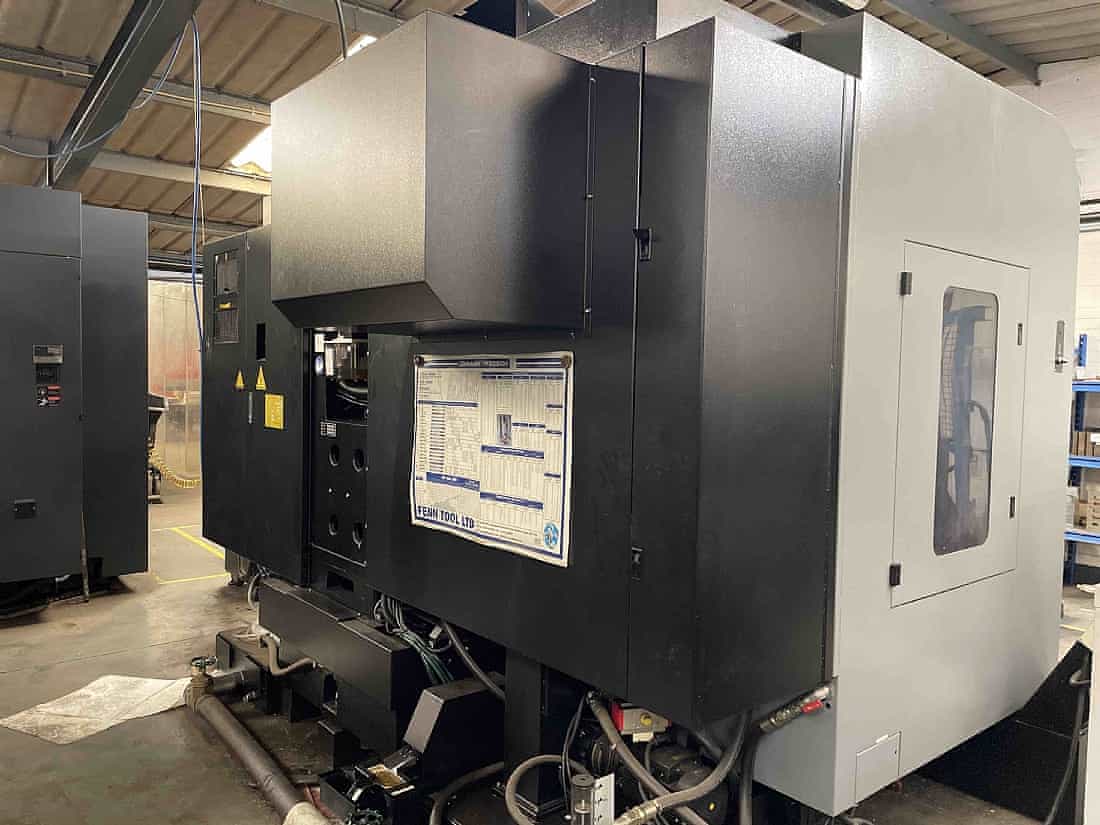

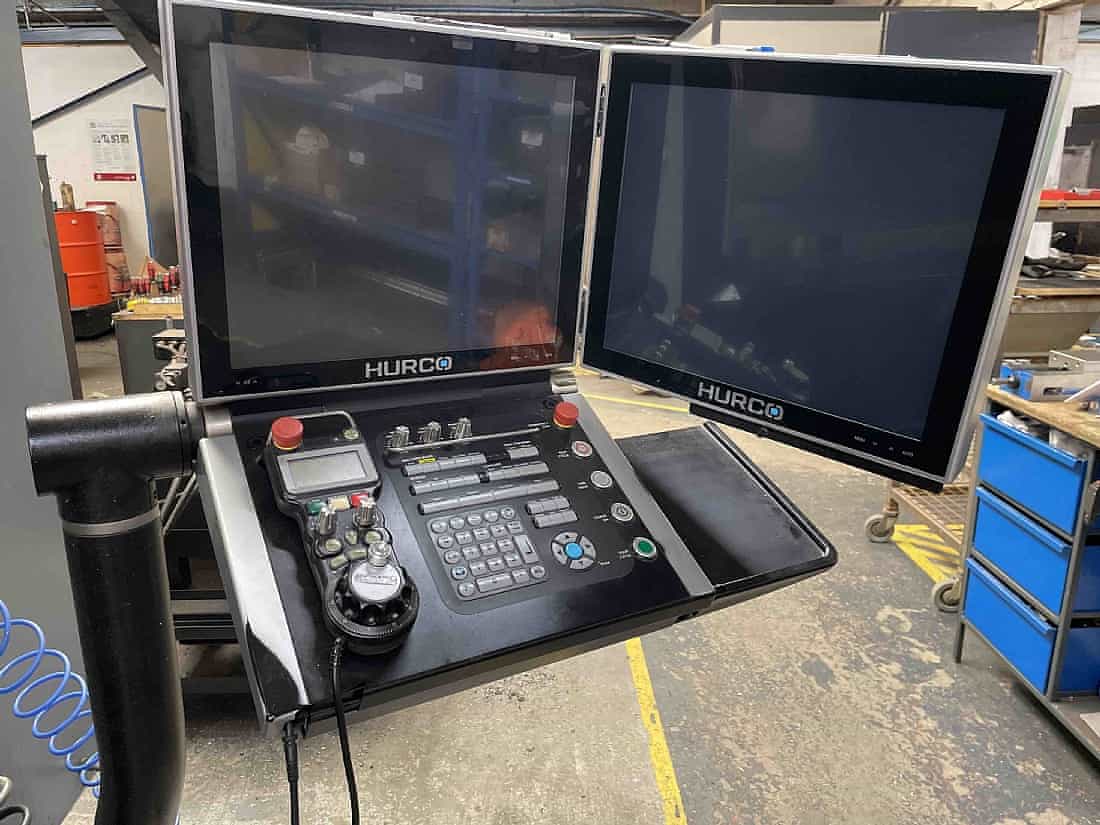

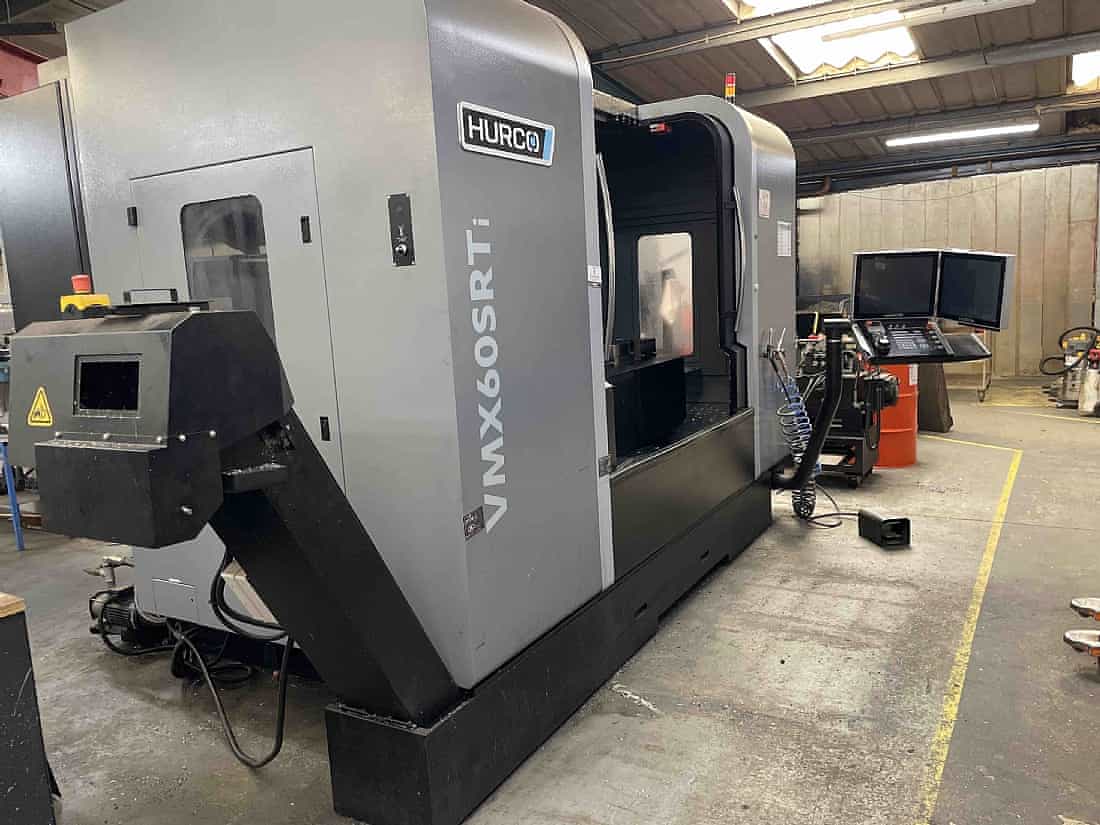

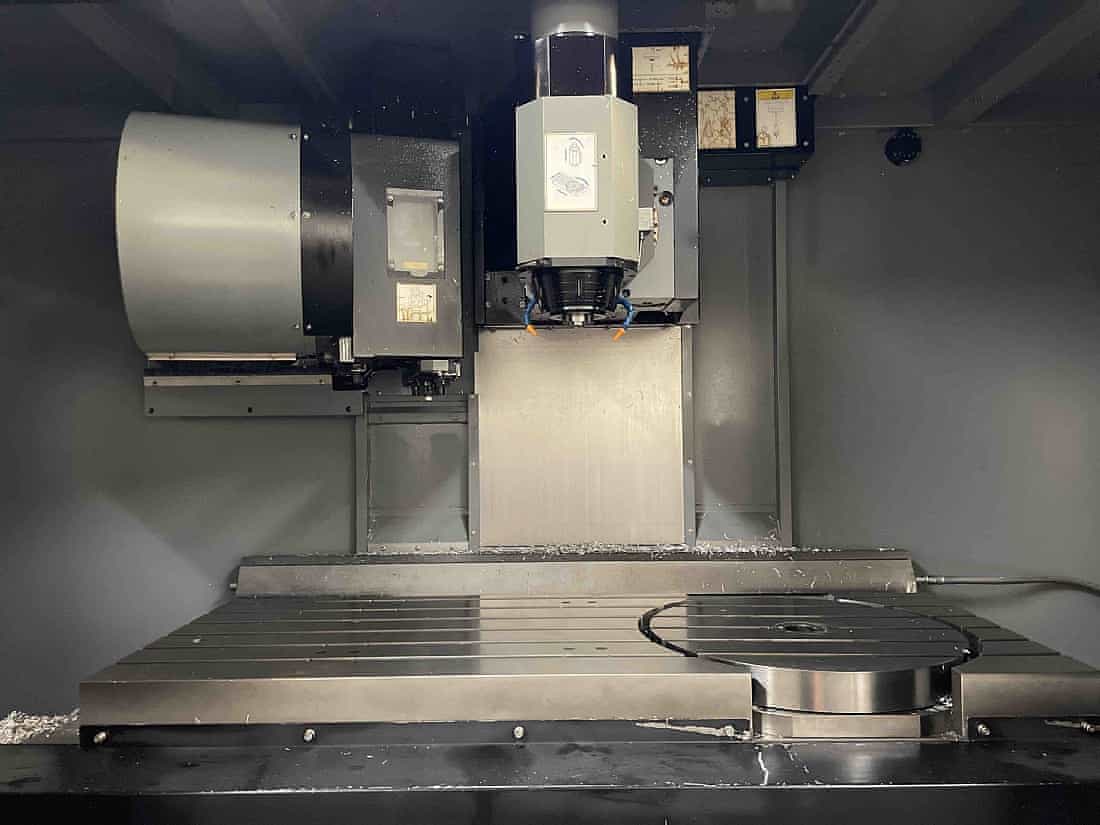

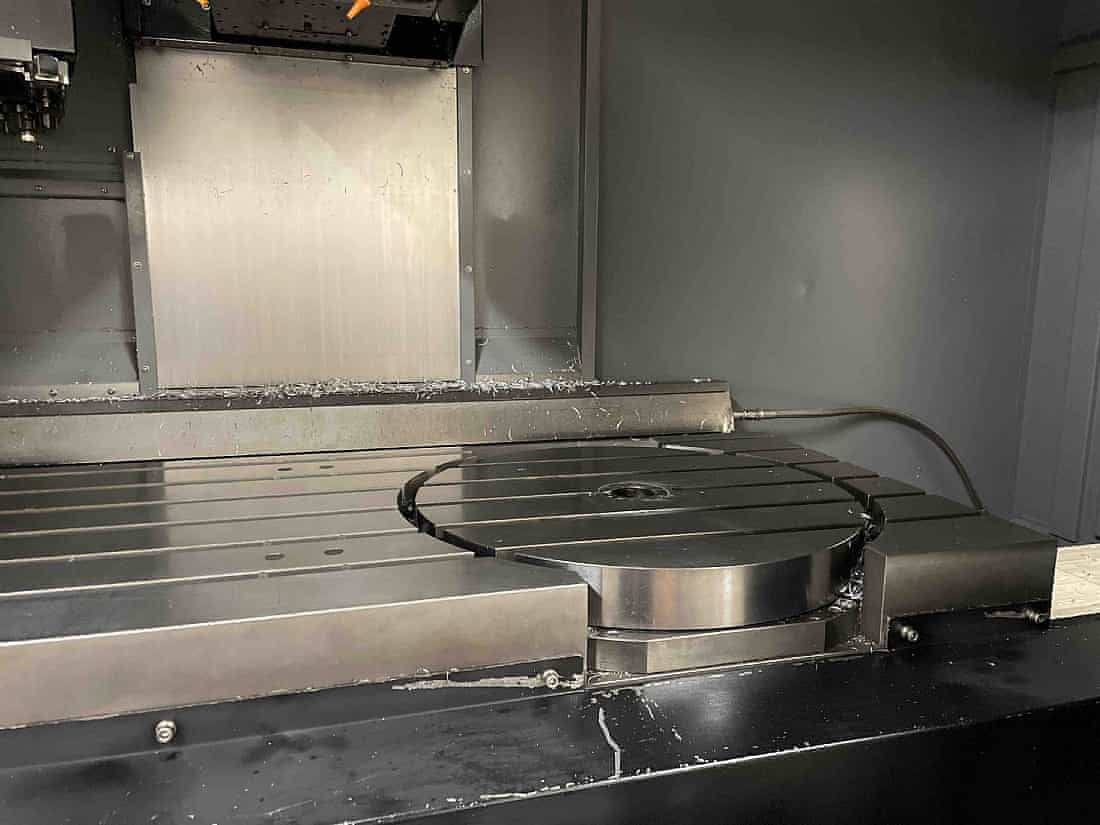

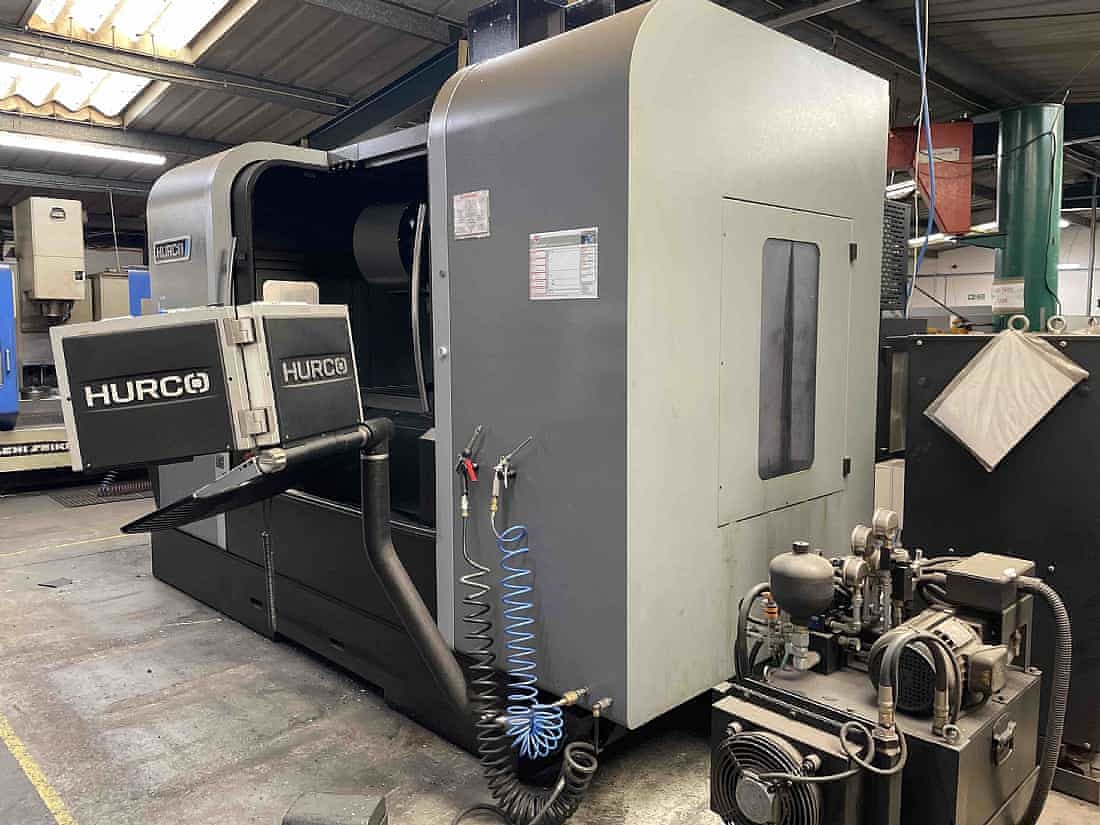

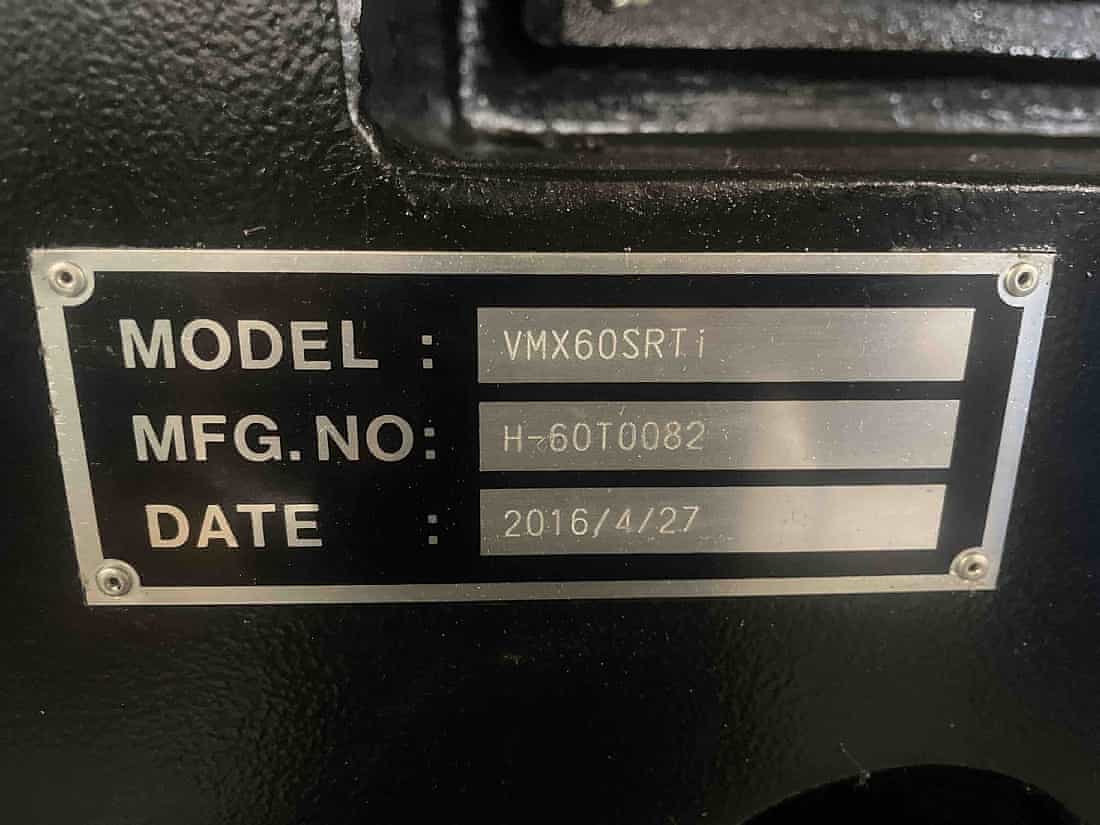

Used Hurco VMX60SRTi 5 Axis VMC, 2016, s/n H-60T0082, Travels X – 1,524mm, Y – 660mm, Z – 610mm, B, C Axis Travel +/- 92°, 360°, Spindle Nose to Table (Min-Max) 13 / 622 mm, Table Size 1,676 x 660 mm, Table Size C 599 mm dia., Max. Weight on Table 1,360 kg, Max Weight on Rotary/ Trunnion Table 500 kg, T-Slot Size 5 x 18 mm, Max. Spindle Speed 12,000 rpm, Spindle Power (peak – 1 min) .5 kW, Spindle Torque (peak – 1 min) 118 Nm @ 2,900 rpm, BT-40, Number Of Tools 40, Max Tool Diameter 75 mm, Max Tool Length 249 mm, Max Tool Weight 7 kg, Feedrates Rapid Traverse X,Y,Z Axis 32, 32, 24 m/min, Max Programmable Feedrate 24 m/min, Rapid Traverse B, C Axis 90, 100 rpm. Size – Max. Operating Floor Space 5,662 x 3,921 mm, Machine Height 3,298 mm, Machine Weight 10,900 kg, Power Rating/ Full Load KVA 70 KVA
