Manufacturer:
Model:
Description:

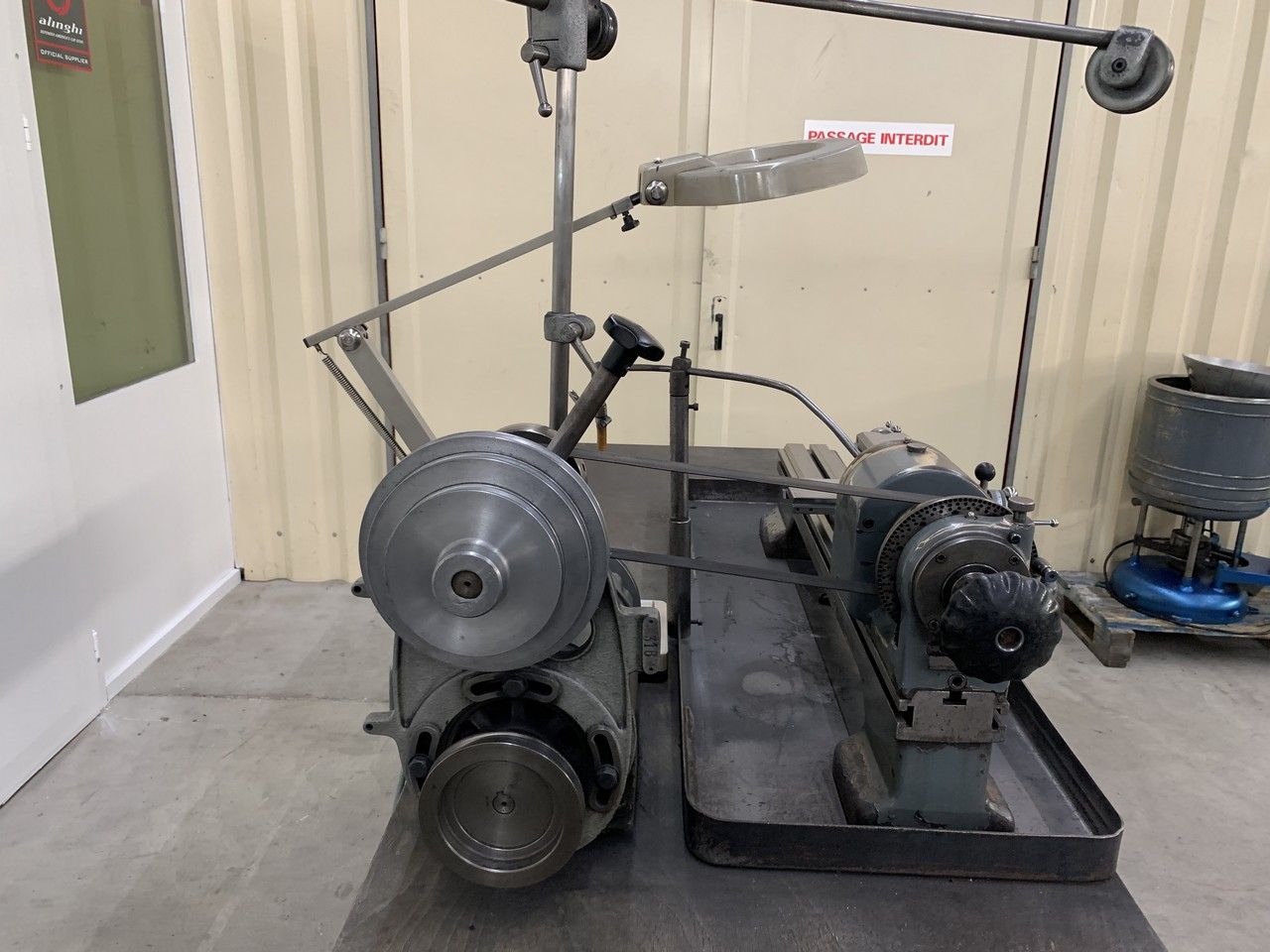

ROSA
TRP.COL.O377
USED MACHINE
Or
Reference: 2200015
on workbench
| Manufacturing origin | Swiss |
| Voltage | 380V 50Hz 3Ph |
| Netweight | 300 kg |
| Customs position | 8458.1930 |
| Capacities : | |
| - height of centres | 102 mm |
| - distance between centre, standard headstock | |
| type W | 470 mm |
| - distance between centres, headstock type W with | |
| reduction unit | 375 mm |
| - swing over bed | 200 mm |
| - swing over carriage | 120 mm |
| Bed : | |
| - height-width-length | 168-100-1000 mm |
| cast-iron bed with ground inverted-V profile | |
| Headstocks : | |
| - spindle nose for collets | W-25 |
| - maximum bore through collet | 19.0 mm |
| - headstock with reduction unit, ratio | 1:5 |
| Carriages : | |
| - stroke of longitudinal tool slide | 90 mm |
| - stroke of transverse tool slide | 100 mm |
| - size of tools | 12x12 mm |
| Tailstocks : | |
| - internal taper of tailstock spindle | Morse 2 |
| - spindle stroke, screw- and handwheel-operated | 80 mm |
| errors and omission excepted-data given without obligation | |
