Reference: 2180140

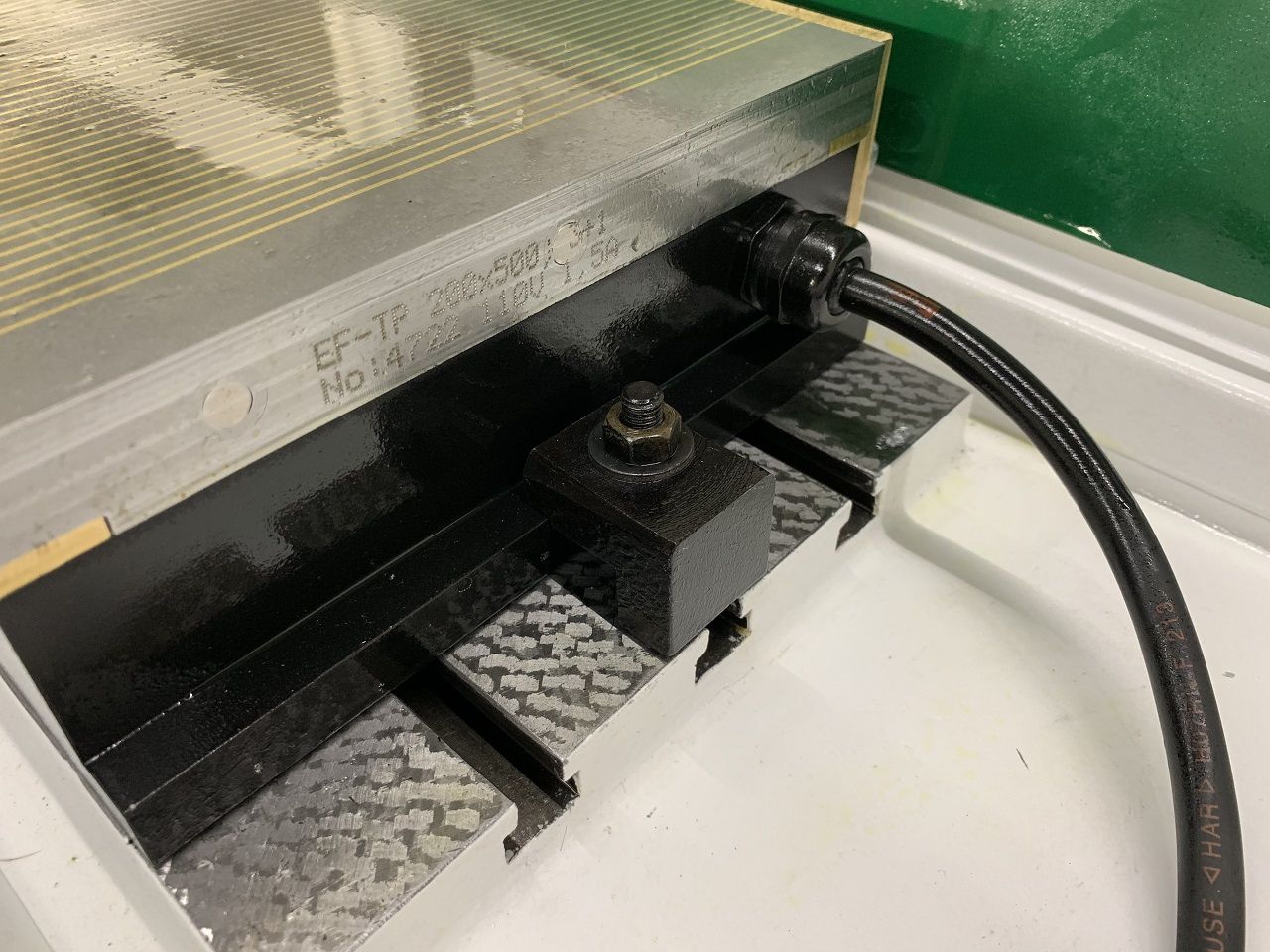

overhauled, eletro-magnetic plate 500x200 mm NEW, Zumbach SV845, new digital read-out 2 axis RSF Z300
| Manufacturing origin | Swiss |
| Voltage | 380/50/3 |
| Netweight | 1350 kg |
| Dimensions | 190x140x170 cm |
| Customs position | 8460.1920 |
| Greatest slideways | 530x220 mm |
| Greatest grinding surface | 520x230 mm |
| Gripping surface of the table | 600x200 mm |
| Speed of the longitudinal table | 0-25 m/min |
| - with slow forward | 5/10mm - 8 m/min |
| Speed of the transverse slide | 0-6 m/min |
| Height adjustment, manual | 330 mm |
| - with fast forward | 290 mm |
| - speed | 460 mm/min |
| Greatest distance between table and spindle-axis | 412 mm |
| Vertical movement | |
| - manually, 1 division | 0,01 mm |
| - with micrometric adjusment, 1 division | 0,001 mm |
| - automatically | 0,001-0,099 mm |
| - with push-button | 0,001 mm |
| Transverse movement | |
| - by handwheel | 1 division 0,01 mm |
| - with micrometric adjustment | 1 division 0,001 mm |
| Grinding wheel | |
| - diameter x width x bore | 250x30x76.2 mm |
| - r.p.m., normal | 2700 rpm |
| - r.p.m., with variator | 3300-1150 rpm |
| Motors for | |
| Grinding wheel | 1,8 kW |
| 3000 rpm | |
| Hydraulic pump | 1,0 kW |
| 1400 rpm | |
| Cooling water | 0,1 kW |
| 1500 rpm | |
| Speed forward | 0,18 kW |
| 670 rpm | |
| errors and omissions excepted-data given without obligation | |
