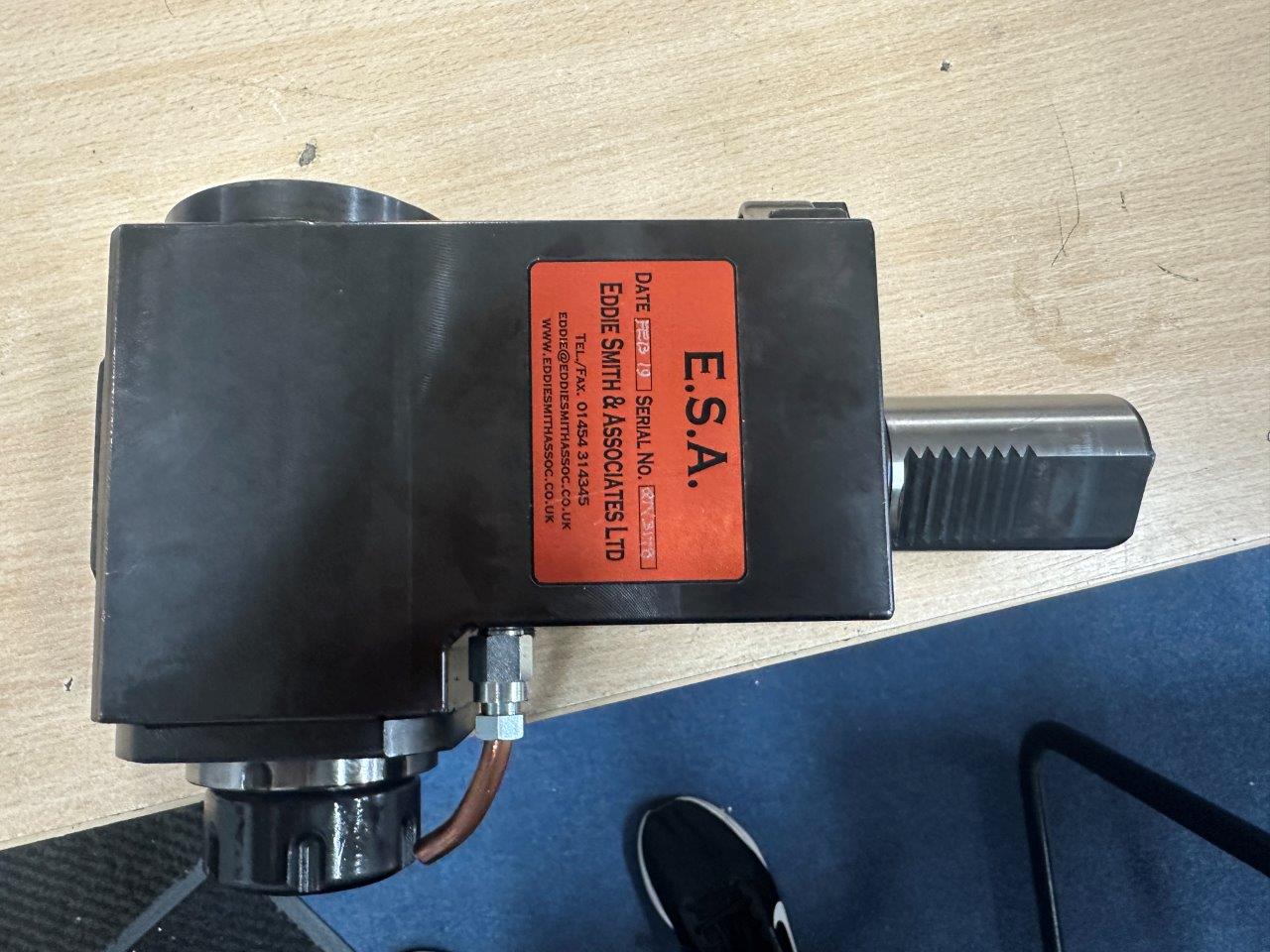

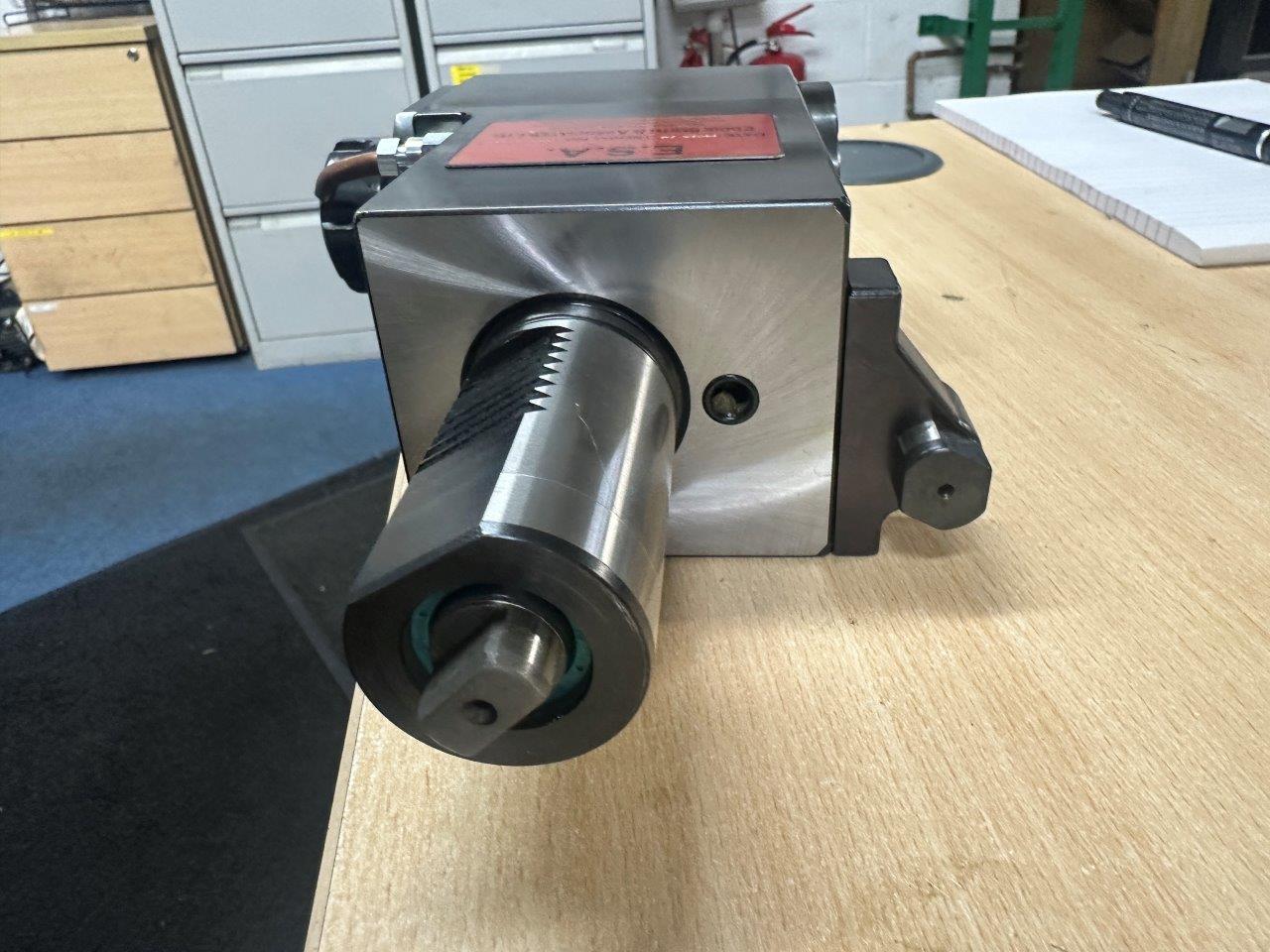

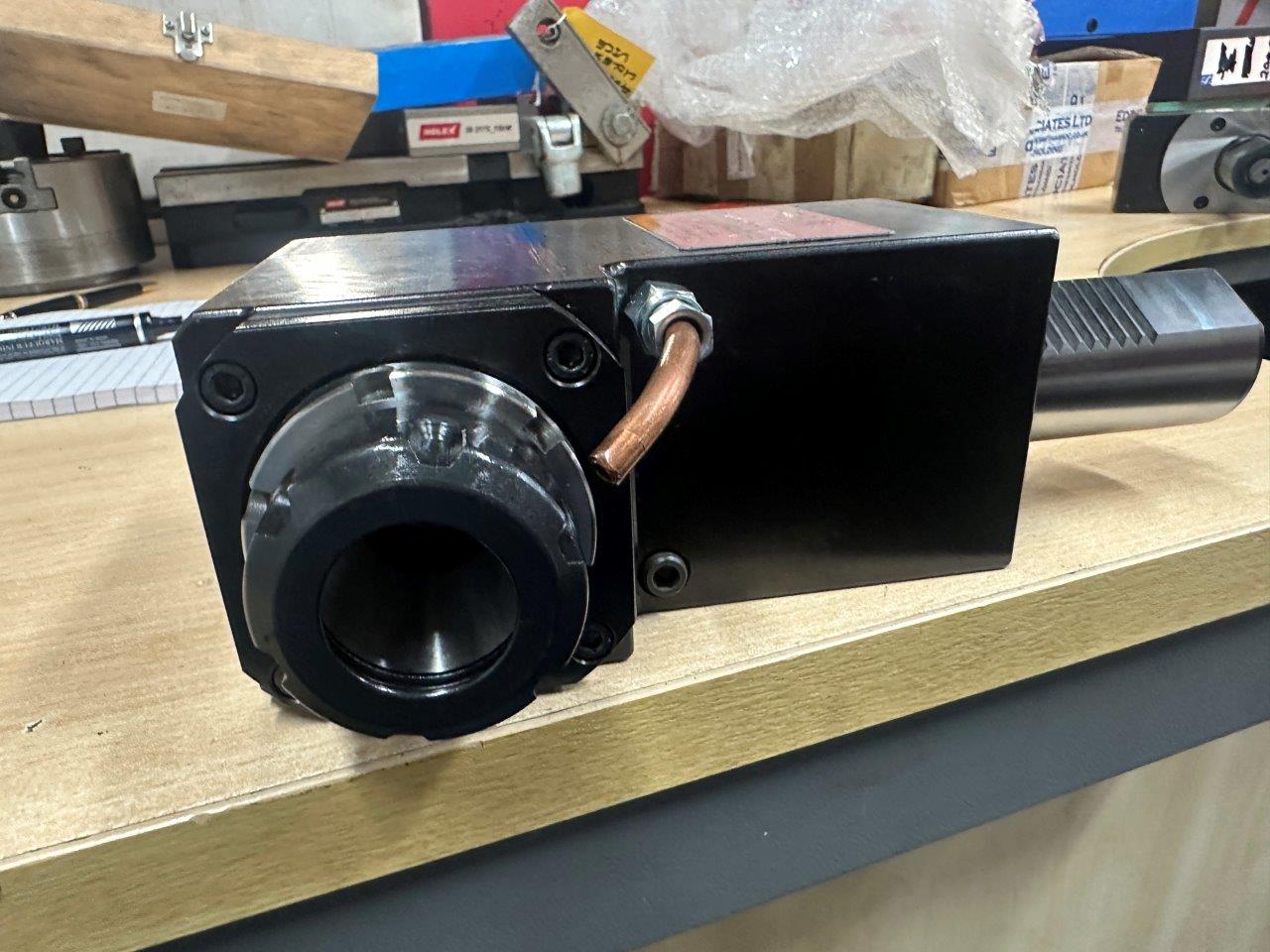

Mazak Tool Holder for CNC Lathes, Right-Andgled Head, VDI 40, Made by E.S.A. to suit Mazak 200/250- 12 station turret. ER32 (tang length 70mm, pin dia 20mm)
DAEWOO
08537
CNC FANUC 18-T
CAPACITY:
Max swing diameter over the bed mm 900
Max swing diameter over the carriage mm 630
Max turning diameter mm 700
Max turning lenght mm 1575
Bar passaging mm 117,5
STROKES:
Axis X mm 370
Axis Y mm 1575
SPINDLE:
Spi...
Pressure total: 100 ton
Daylight: 1.400 mm
Table surface area : 1.300 x 1.000 mm
Slide area: 1.300 x 1.000 mm
Ejector Force: 35 kN max.
capacity of swivelling ram plate: 40 kN
Die Weight on table max.: 80 kN max.
capacity of tilting ...
