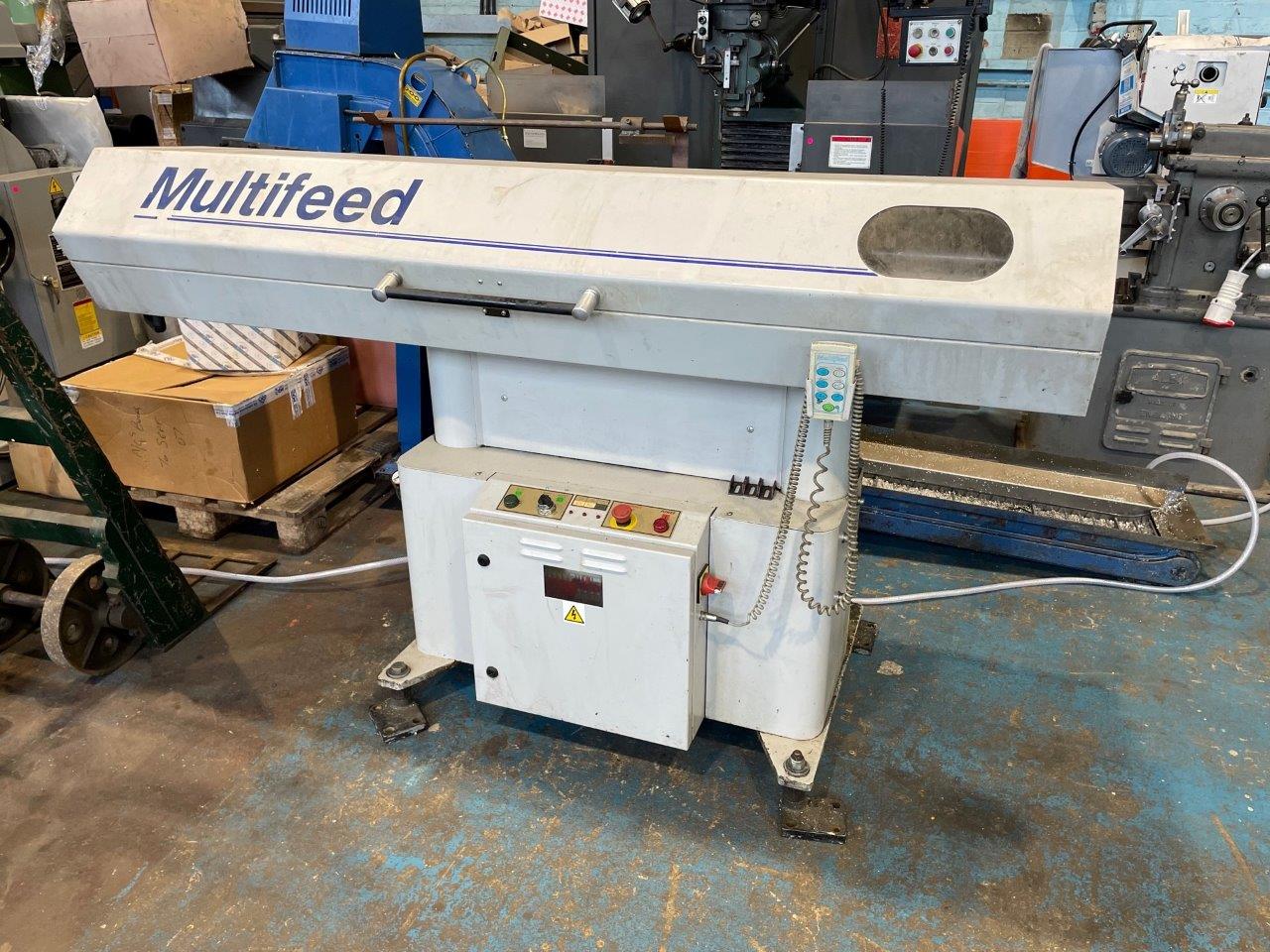

Used Hydrafeed MX1B Multifeed Short Magazine Bar Feeder, 2003, s/n 4897, 1.650 metre bars, Maximum stroke 1,700mm, 3-80mm dia, overall length 2,100mm, Magazine capacity 23 x 25mm dia or equivalent. Weight 415kgs, Height range 700 to 1,500mm.
Soft jaws allow for forming of jaws and subsequent clamping of molded parts which must not have clamping marks on the workpiece surface. Steel jaws are case hardenable for the jaws to be hardened for longevity after machining.
REIS
08154
MOD. TUS 130-100
CNC SIEMENS SIMATIC S5-100U
Press force kN 1000
Ritraction force kN 450
Clamping plate size mm 1300x1600
Installation height mm 1400
Max possible installation height (step 100 mm) mm 1700
Ram stroke mm 1500
Max possible ra...
