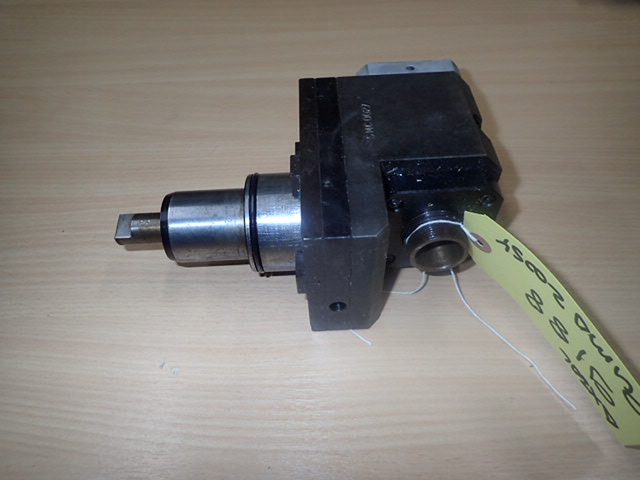

Used BMT55 Angular Driven Tool Holder for CNC Lathes, BMT55, ER25 Collet Chuck, Length of drive to the end of the tang - 103mm, (Suitable for Doosan Lathes)
FRORIEP
06524
Spindle diameter mm 160
Column longitudinal travel X axis mm 16.000
Vertical headstock travel Y axis mm 4000/ 4200
Spindle travel axis Z mm 1500
Ram travel W axis mm 1400
Spindle taper ISO 50
Ram section mm 540x530
Spindle power kw 52
...
