COMESSA PHM 2000 / 800

MACHINE INFORMATION AND SPECIFICATION

Subcategory:

Hydraulic Presses

Manufacturer:

COMESSA

Model:

COMESSA PHM 2000 / 800

Condition:

Used

YOM:

Control:

Price:

Seller:

Pressen Haas

Country:

Germany

DESCRIPTION

Pressure total: 200 ton
Stroke: 630 mm
Daylight: 1000 mm
Table surface area : 1.600 x 1.250 mm
Slide area: 1.600 x1.250 mm
Die cushion capacity in table: 80 ton
Die cushion stroke: 320 mm
Die cushion pad area: 1.250 x 1.000 mm
Distance between the columns: 1.650 mm
Distance between the columns F - B: 500 mm
Approach speed: 300 mm / sec
Working speed: 10 - 30 mm / sec
Return speed: 50 - 140 mm / sec
Required power: 37 kW
Height over floor approx.: 5.200 mm
Weight of machine approx.: 25 ton

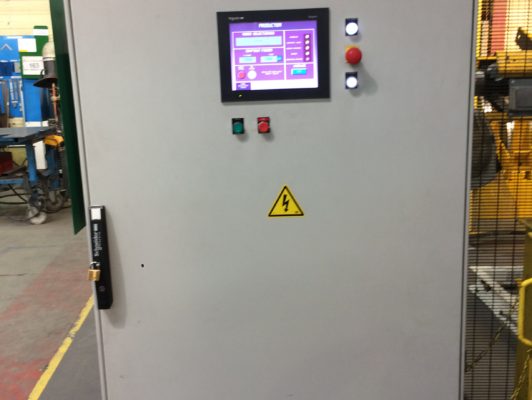

electric revised

+ request more information

SEND ENQUIRY

REQUEST MORE INFORMATION

SEND ENQUIRY

Sellers

Pressen Haas

Contact Name
Mario Kosjerina
